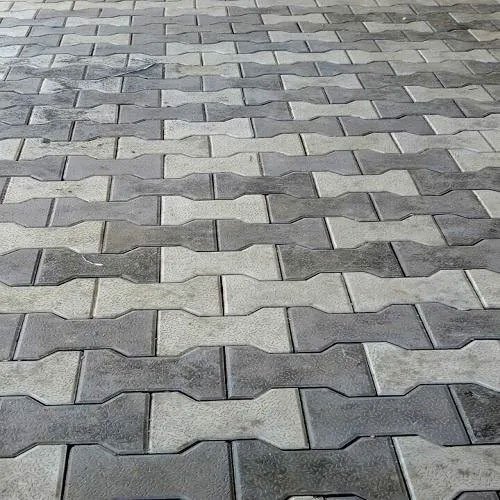

INTERLOCKING PAVER BLOCKS
An interlocking concrete paver is a pre-cast piece of concrete blocks commonly used in exterior
landscaping applications. Interlocking paving stones are installed over a compacted metal stone sub-
base and a levelling bed of sand. Instead of connecting the pavers by pouring grout between the
joints as one would with tiles, sand particles are spread over the pavers and tamped down. The sand
stabilizers the interlocking pavers, yet allows for some flexibility .This type of pavement will absorb
stress such as small earthquakes, freezes and thaws, and slight ground erosion by shifting each tile
slightly. Therefore, they will not crack or buckle like concrete, though bad weather may make
potholes.
Segmented concrete paving is a system of individual shaped blocks arranged to form a continuous
hardwearing surface overlay. It has been successfully used for embankment
Features of Paver Blocks
-
The Occurrence of Material Damages Caused by Accidents, Rear and Collisins, Etc.,
can be Greatly Reduced.
- Improvement of Breaking Effect, Amelioration of Visible Recognition
- Awakening of the Attention of Drivers Due to the Difference of Feeling while Passing on from an
Asphalt Pavement to an Interlocking Block pavement.
- The Percentage of Failure of the Blocks may be 0.2%
- The Wet Conditions the Stopping distance on Our Interlocking Block Pavement is considerably
Less than an Asphalt Pavement.
- A Correct Engineering Solution being selected after a thorough analysis of Site and Traffic Conditions
have been Carried out.
- Correct Design Details being selected so that considerations of Durability, Aesthetic, Economy
and Structures and fulfilled.
- Correct construction procedures being employed during the construction of pavement.
Applications of interlocking paver blocks:
- Residential complexes
- Commercial complexes
- Industrial sites
- Driveways
- Ports, Airports
- Warehouses
- Roads, Road junctions
- Bus terminals
- Petrol stations
- walkways and sideways
- Pool decks
- Parking lots
Thickness of paver blocks
40 mm, 60 mm and 80mm thick respective of shape and designs.
Concrete mix grade:
M20, M30, M40, M50, M55 grade
